West London Tram Shepherds Bush Detail |
|
Some graphics We present the following to help TfL diseminate its information. We wish to make the information available for informed comment to cyclists and other concerned persons. Cross-sections These come from Drawings
No. 8012BG05/A2 sheets A and B and dated 07/ 01/ 03. Detail of route These graphics have been scanned from plans produced for Transport for London, London Trams. They are known as level 2 plans / issue 3. The drawing No. is D101169 / S208 and it is dated 13/02/03. The original plans have the logos of Scott Wilson and Aegis Semaly Ltd on them. These level 2 plans are in the public domain. There are also level 1 plans. Those are not in the public domain and it is not known what they show. The blue numbers along the route refer to the cross-section type. The black numbers on a blue square refer to the number of the nearby tramstop shown by a blue circle. To reduce file size and download time, low resolution scans have been used and so they lack the clarity of the originals. |
|
Cross-sections These are sections along the route looking east |
|
Section from west going up to Lime Grove | |
Between Lime Grove and Wood Lane | |
North side of Shepherds Bush Green | |

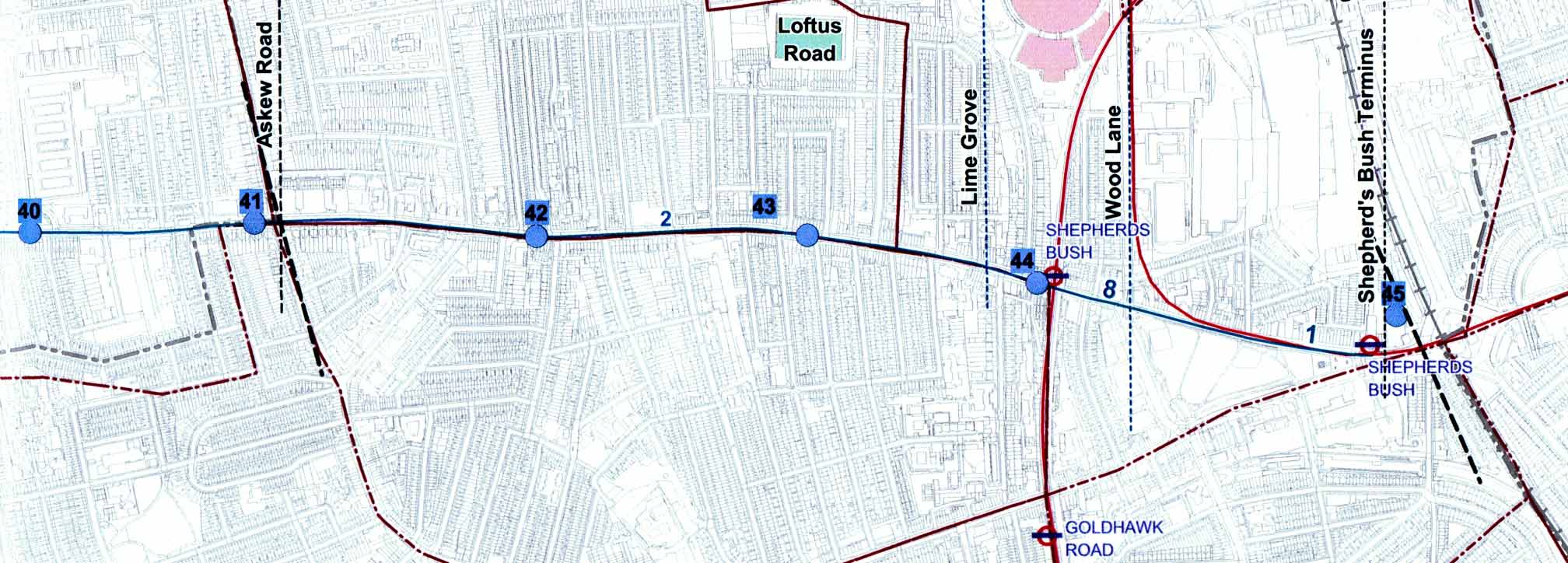

Detail of route The image below may take a short while to load John Griffiths [co-ordinator
hfcyclists] |
