West London Tram

Acton Detail

Some graphics

We present the following to help TfL diseminate its information. We wish to make the information available for informed comment to cyclists and other concerned persons.

Ealing Detail
Shepherds Bush Detail

Cross-sections

These come from Drawings No. 8012BG05/A2 sheets A and B and dated 07/ 01/ 03.
You are looking east along the Uxbridge rd.

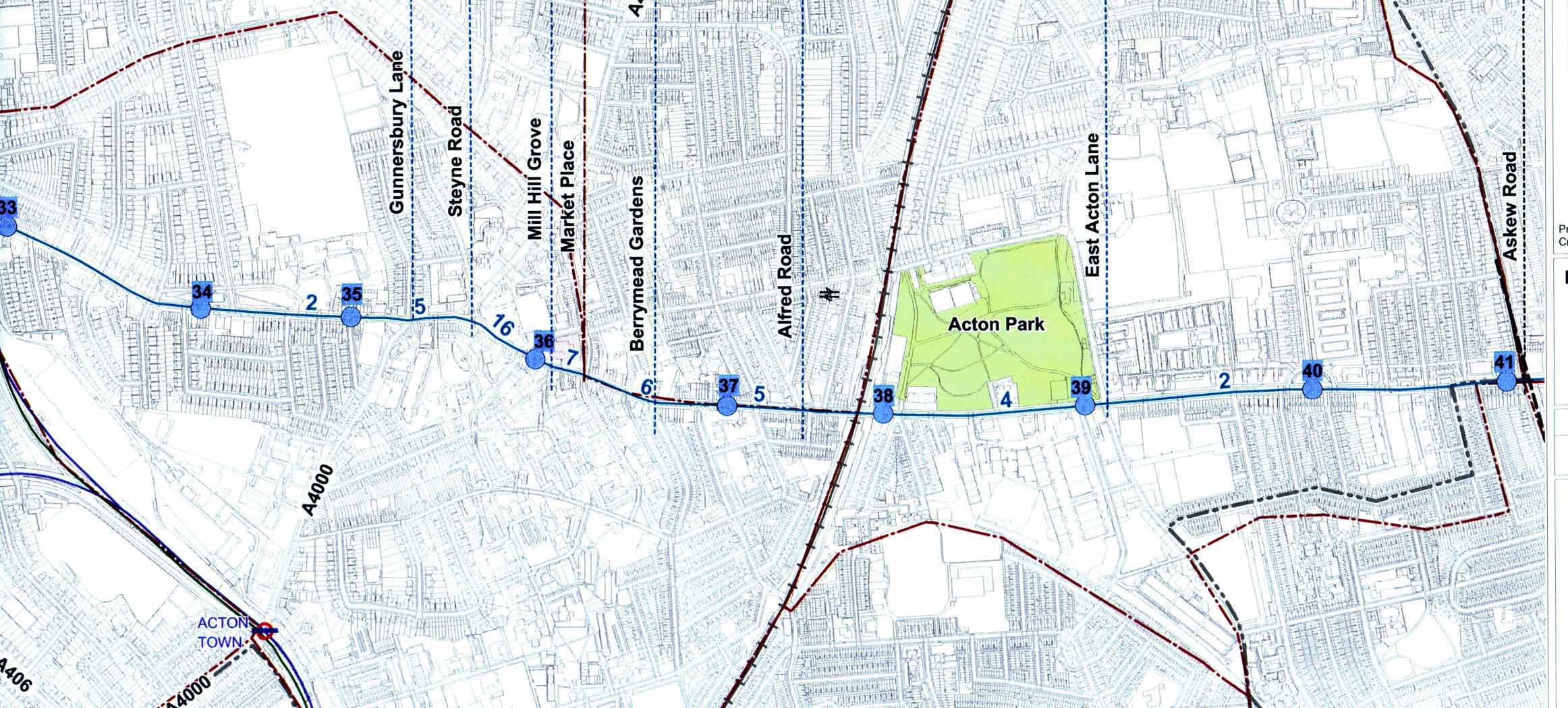

Detail of route

These graphics have been scanned from plans produced for Transport for London, London Trams. They are known as level 2 plans / issue 3.

The drawing No. is D101169 / S207 and it is dated 13/02/03. The original plans have the logos of Scott Wilson and Aegis Semaly Ltd on them.

These level 2 plans are in the public domain. There are also level 1 plans. Those are not in the public domain and it is not known what they show.

The blue numbers along the route refer to the cross-section type.

The black numbers on a blue square refer to the number of the nearby tramstop shown by a blue circle.

To reduce file size and download time, low resolution scans have been used and so they lack the clarity of the originals.

Cross-sections

Cross-
section 4

North Common rd
to
Warwick rd

Cross-
section 2

Warwick rd
to
Gunnersbury Lane

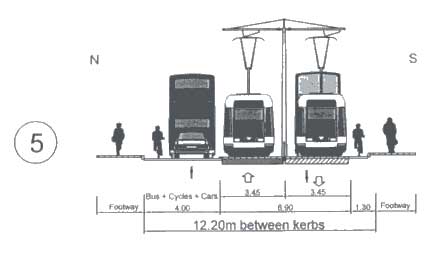

Cross-
section 5

Gunnersbury Lane
to
Steyne rd

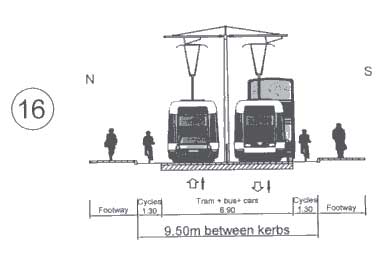

Cross-
section 16

Steyne rd
to
Mill Hill grove

Cross-
section 7

Mill Hill grove
to
Market Place

Cross-
section 6

Market Place
to
Berrymead Gdns

Cross-
section 5

Berrymead Gdns
to
Alfred rd

Cross-
section 4

Alfred rd
to
East Acton lane

Cross-
section 2

East Acton lane
to
Askew rd

Detail of route

The image below may take a short while to load
